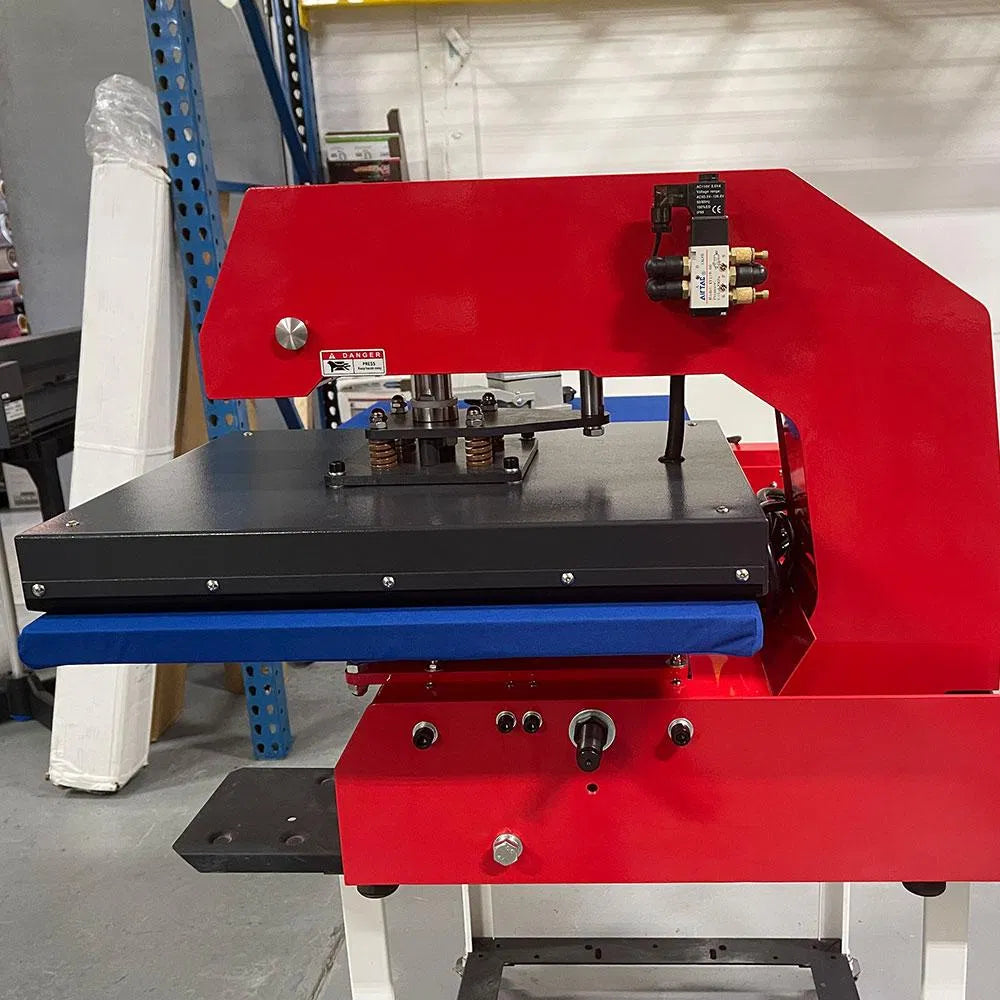

This heat press is based on the working principle of thermal transfer, the special heat transfer paper (film) on the various patterns, hot stamping, such as T-shirts, clothing, towels, bags, socks, gloves, non-woven fabrics.
Features
- Fully automatic and manual modes exchange easy

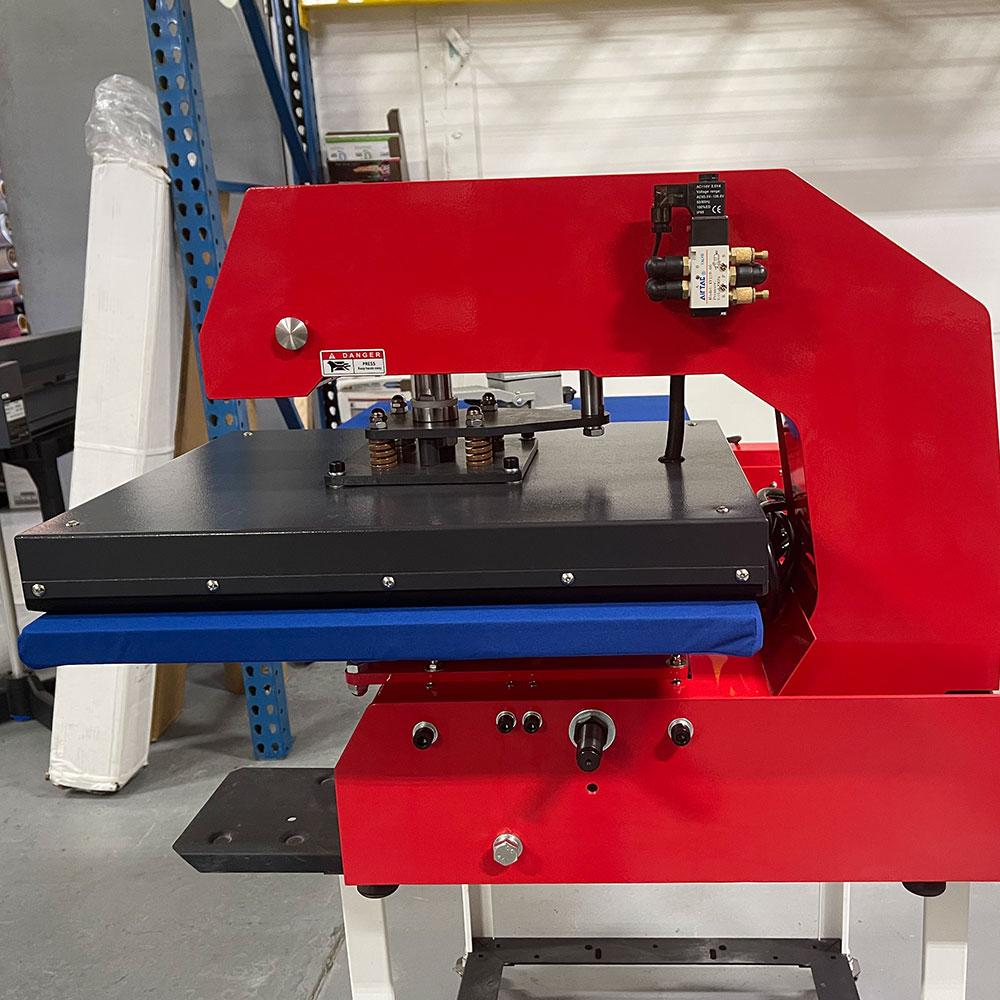

- Pneumatic cylinder driven the press automatic

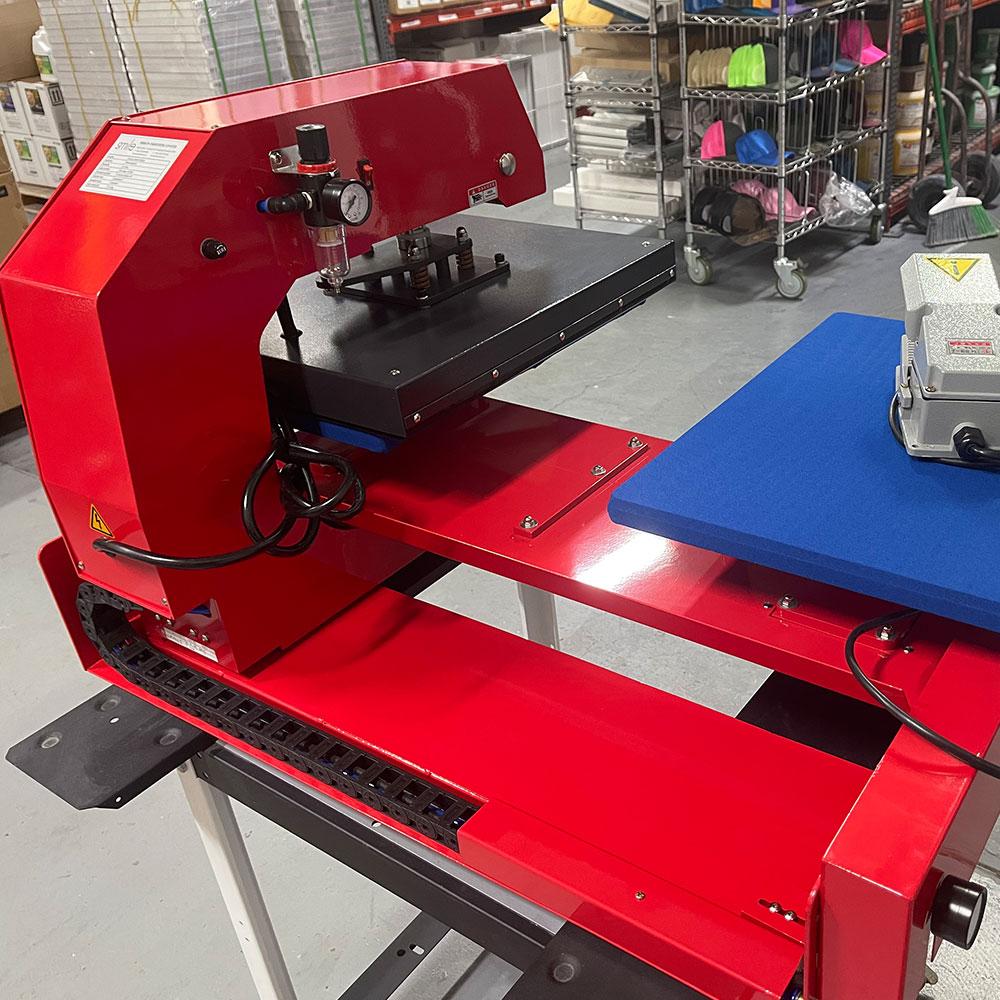

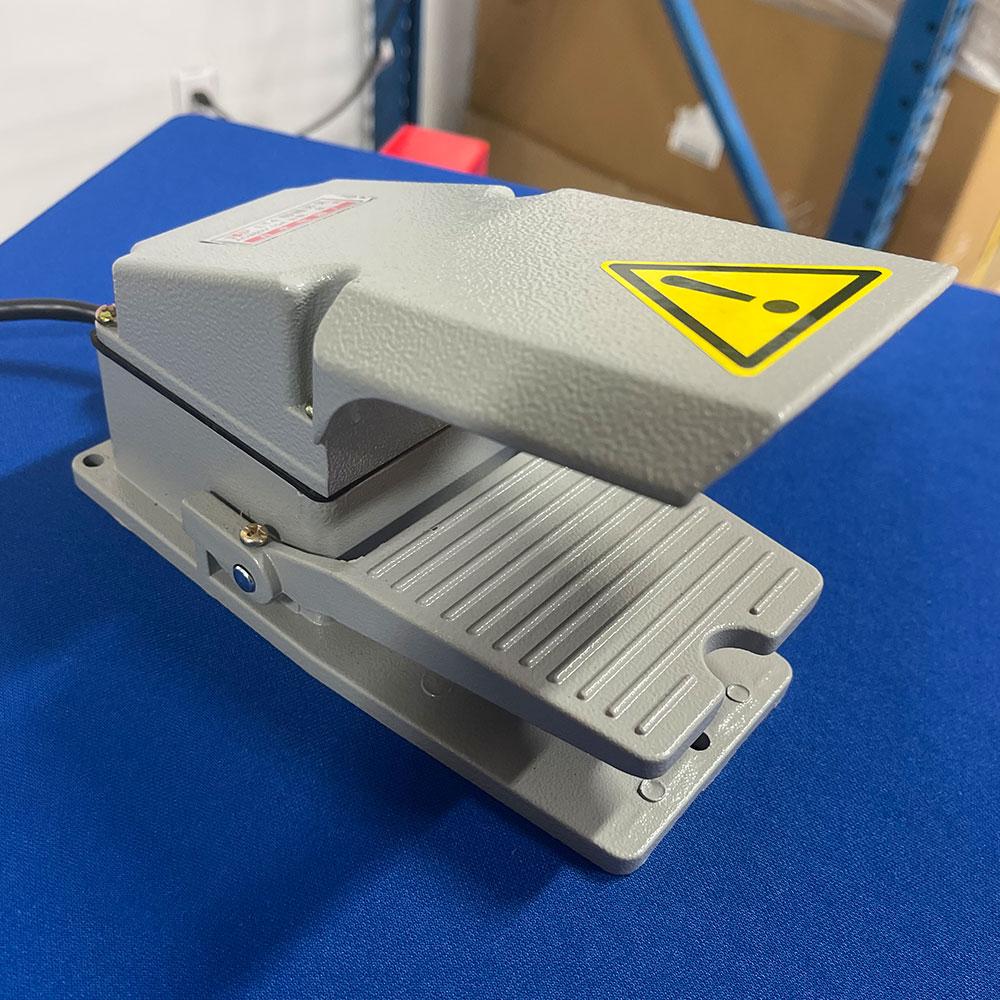

- The foot switch controls the movement (left-right) of heating head
- With emergency stop switch, heat press can be stopped under any accidence;

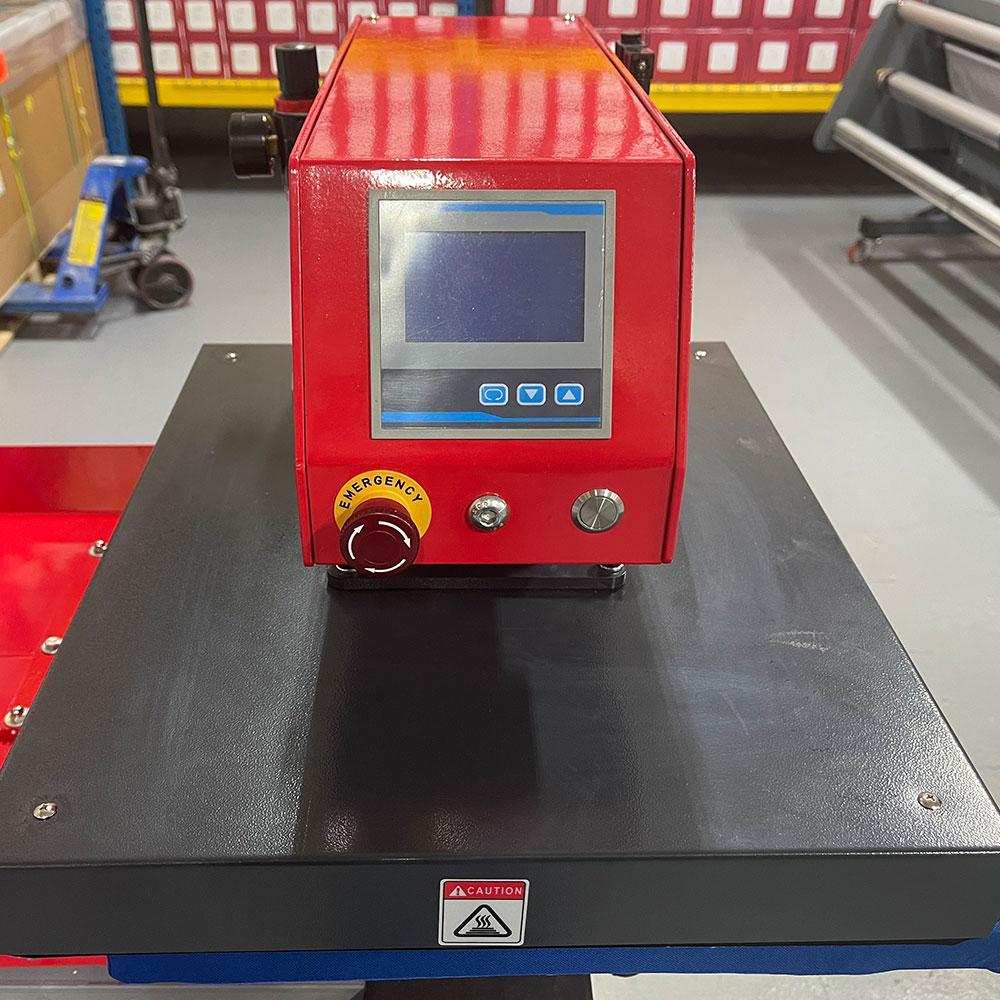

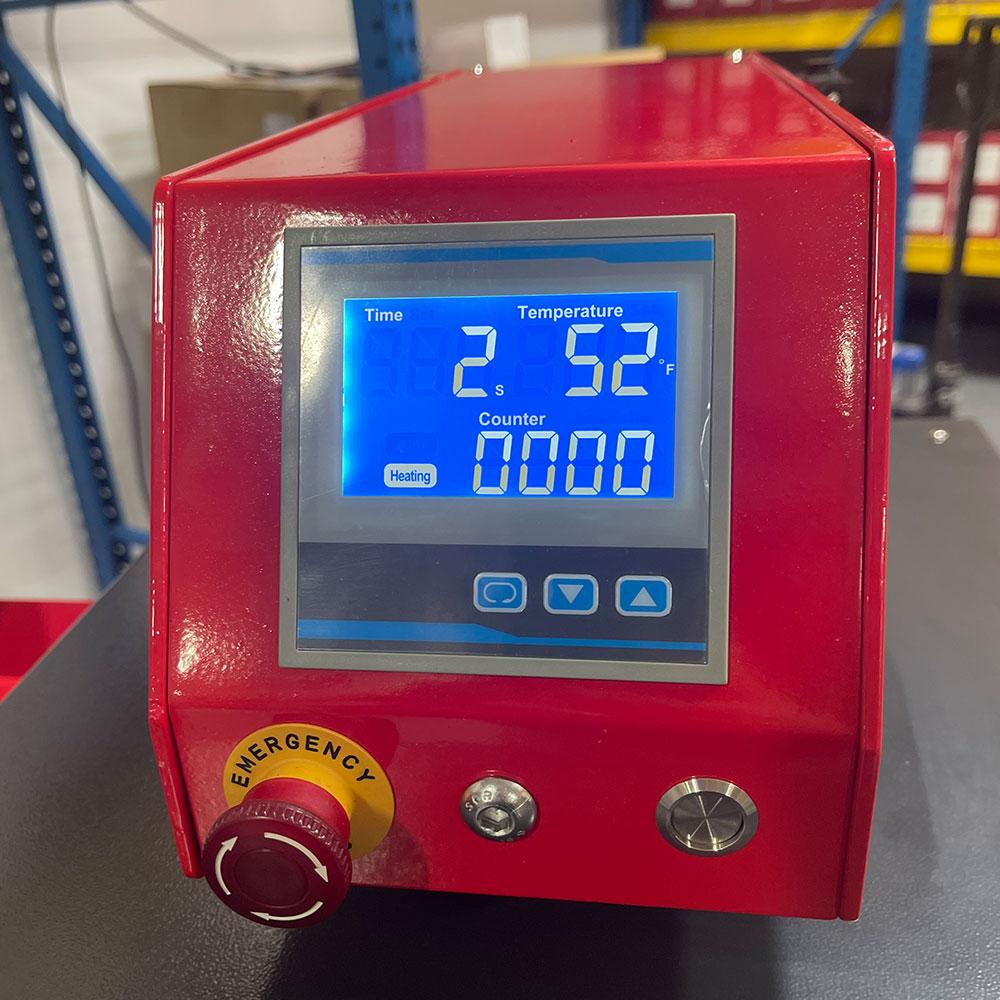

- Touch screen type temperature and time setting, easy to operate

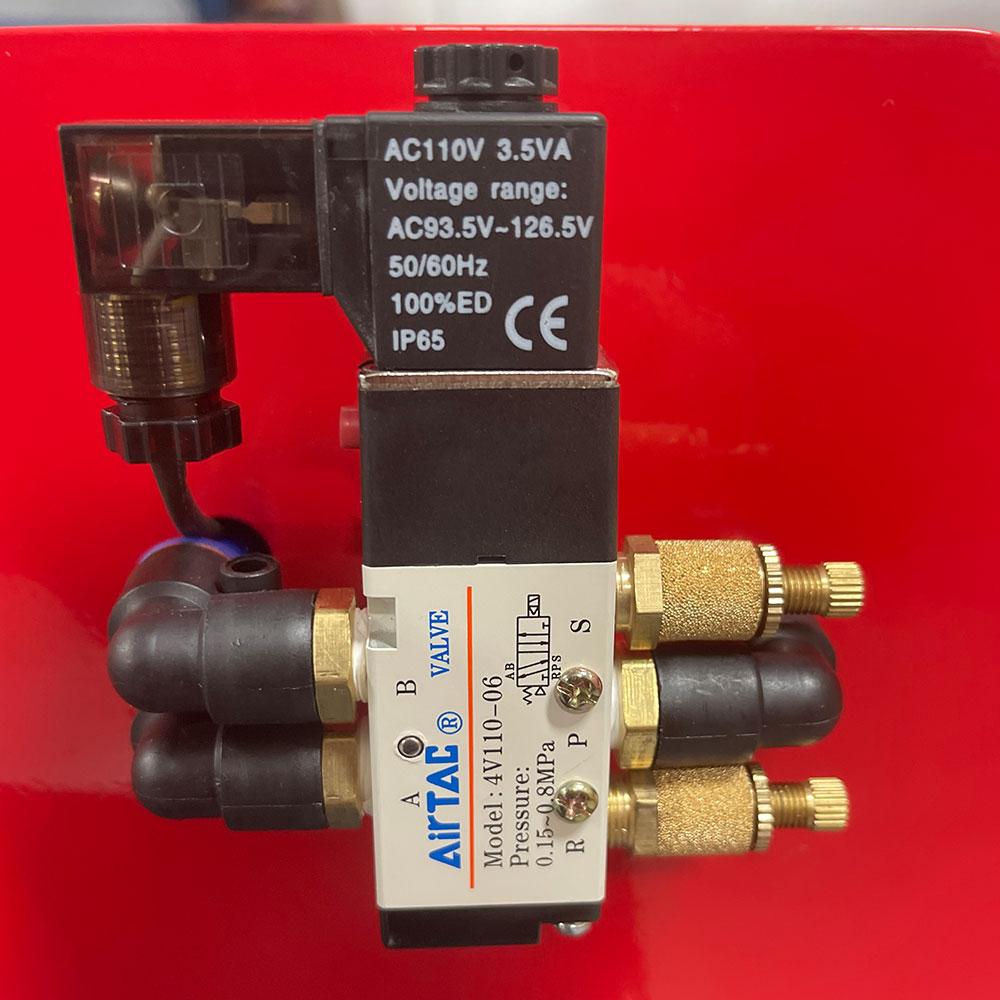

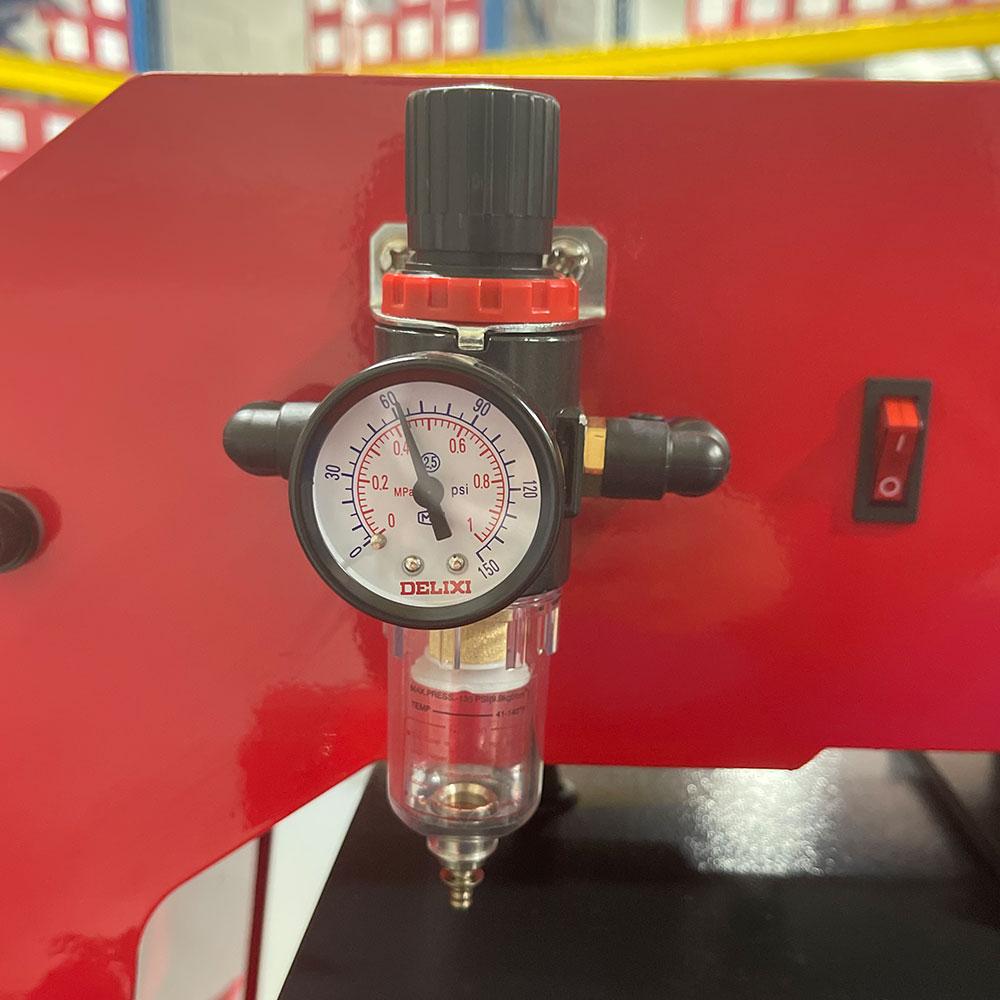

- With water separator, effectively protect the solenoid valve and other parts
- Special cast aluminum heating plate by 23mm thickness aluminum casting, long working life
- Heating head with PTFE protective film
- With circuit protection device, safe and reliable use
- Conventional heat press speed up to 260 / hour;
- Press quantity is be counted
- Optional small platen (180x500mm and 280x500mm) for children’s or women’s objects
- Heating head’s speeding (up/down) and pressure are adjustable
Parameters
- Maximum temperature setting: room temperature ~500F
- Maximum time setting: 0~999 seconds
- Heat press driven: Pneumatic cylinder
- Working pressure: 58~87 PSI
Model

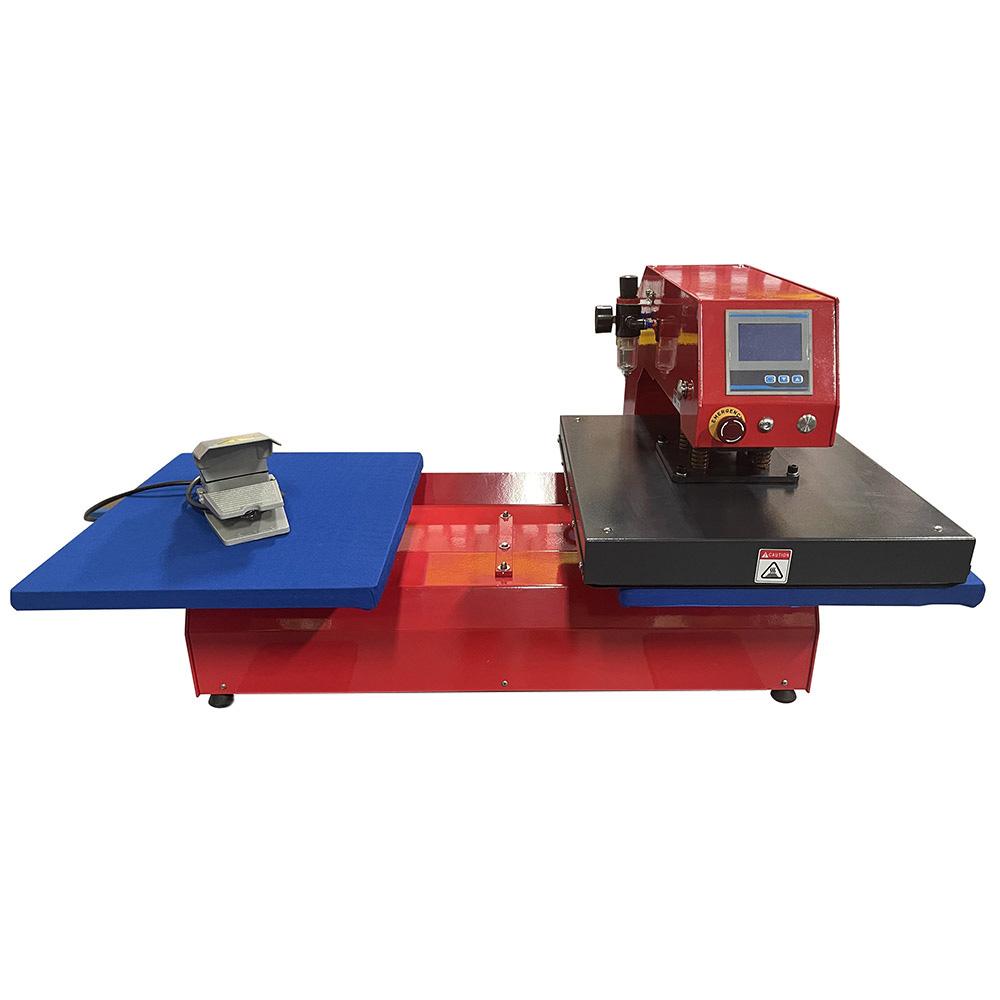

PHP-4050AS: 400x500mm, 110V/2.5Kw (Desktop)
